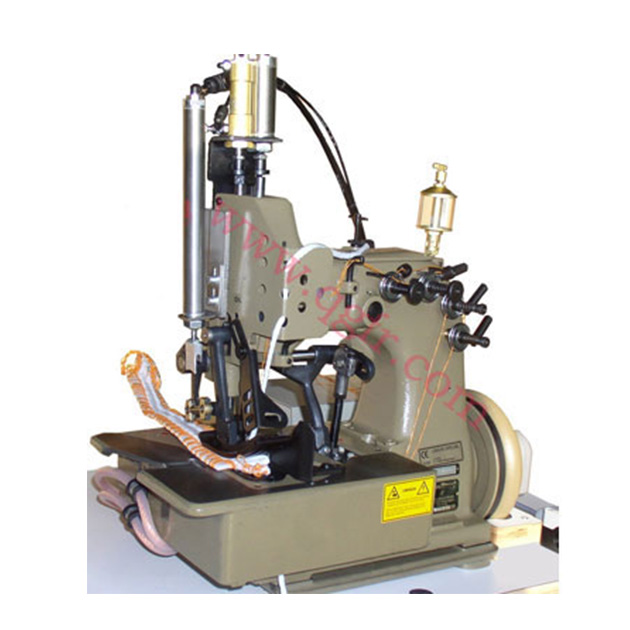

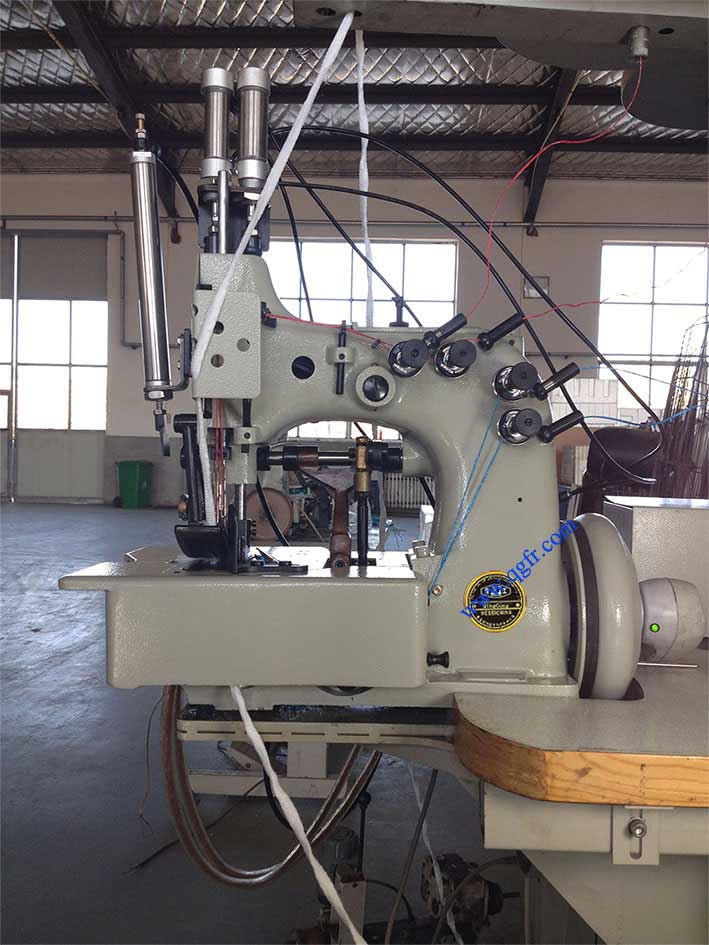

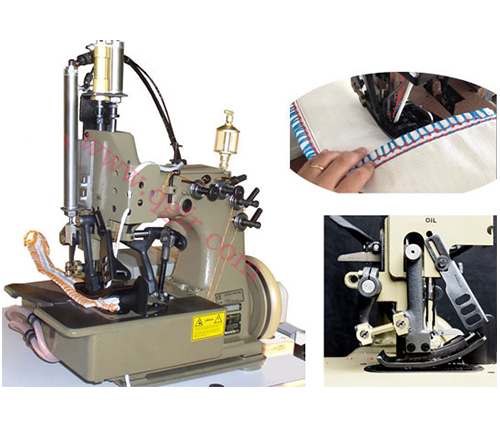

81300 Heavy duty FIBC sewing machine
product description
81300 Heavy duty FIBC sewing machine: Heavy duty two needle, four thread safety stitch machine with high needle throw. With top and bottom feed for matched seams on heavy bag fabric. Needle distance 5mm, overedge seam width 19 mm, seam width overall 24 mm. With guide for filler cord from the top and / or below for sealing the needle punctures of the left needle. Electro-pneumatically operated presser foot and upper feed dog lifter. Pneumatic presser foot spring. With built-in electro-pneumatically operated hot thread chain cutter left of the needle for separating the thread chain from below.
- Stitches/min.：1400
- Stitch range：6.00mm - 13.00mm
- Standard setting：10.00mm
- Capacity under presser foot：16.00mm
- Thread chain and tape cutter：Hot thread chain cutter left of the needle
- Bag material：PP-woven-fabric，PP-laminated woven-fabric，F(xiàn)elt
- Lubrication：Manual lubrication
- Standard needle：9853GA430/172
- Stitch types：(401.502)
- Feed type：Top and bottom feed
- Closures：Plain seam
- Bag types：Single loop bag，Double loop bag，Container bag，Baffle-Bag (Q-Bag)
- Material thickness：100-200 g/m2，above 200 g/m2
- Needles：2
- Thread：2500-4000 Den
- Packing mass (L/W/H) ：46cm/47cm/61cm
- Net weight ：48kg
- Gross weight ：53kg
